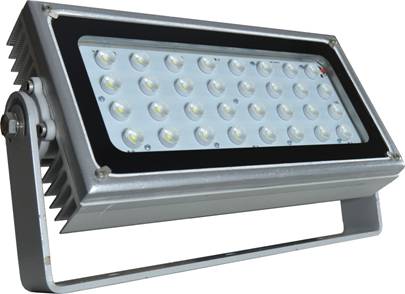

PRODUCT PHOTOS
|
|
GENERAL FEATURES
- Up to %70 Energy saving
- 60.000+ hours product life according to LM80
- LED chips: USA Brand XTE CREE
- Wide radiation angle, huge lighting area.
- Exuruded aluminum and high intensity toughened glass cover.
- Energy saving system, saving 70% energy than the conventional Metal halide lamp, Sodium Light or HPS light.
- Ideal heat dissipation design.
- High efficiency and power factor LED driver. PF>0,95, Efficiency>%90
- No UV & IR, No Blinking and No Mercury & Lead free.
- Can control Bean angle 45/60/80/120 degree
- Aluminum PCB (2.2W/mK)
- Special silicon gasket
- IP67 rated to the luminaire
- 3 Year warrant

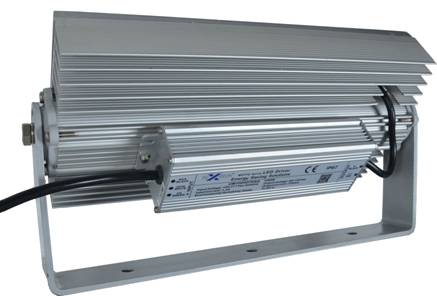

Air-flow through anodized heat sink design provides perfect heat management to guarantee long life of the LED
|
Tool-less access to the down-opening driver door makes easy maintenance and installation.
|
Air-flow through anodized heat sink design provides perfect heat management to guarantee long life of the LED.  |
High tempered glass with over 90% light transmission rate allows for high efficiency of the light using and protection
|
The tough bolts were offered for the free angle adjustment to optimize the target illumination.  |
IP67 rated to the luminaire
|
LED & OPTICS DESIGN
|
|
USA brand CREE led chip technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (5000-5800K) & Warm white (4000-4500K) with CRI 70 rated or customized CCT LED are available. |
Precise optic lens in high intensity PC material with professional light distribution design provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light. |
APPLICATION AREAS
- • Wall washing applications
• Security Lighting
• Flood Lighting

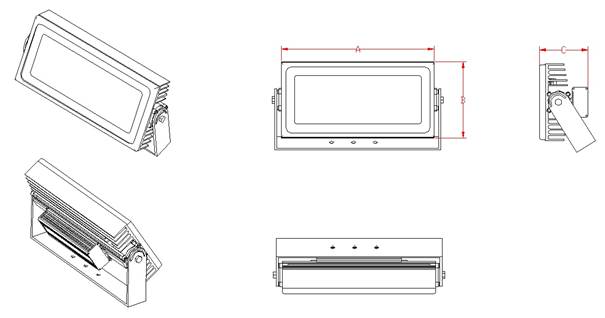

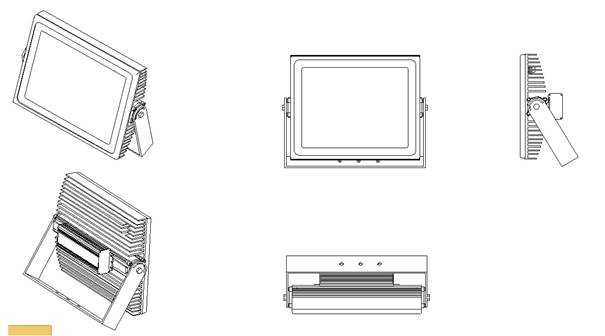

TECHNICAL DRAWINGS
TECHNICAL DETAILS
